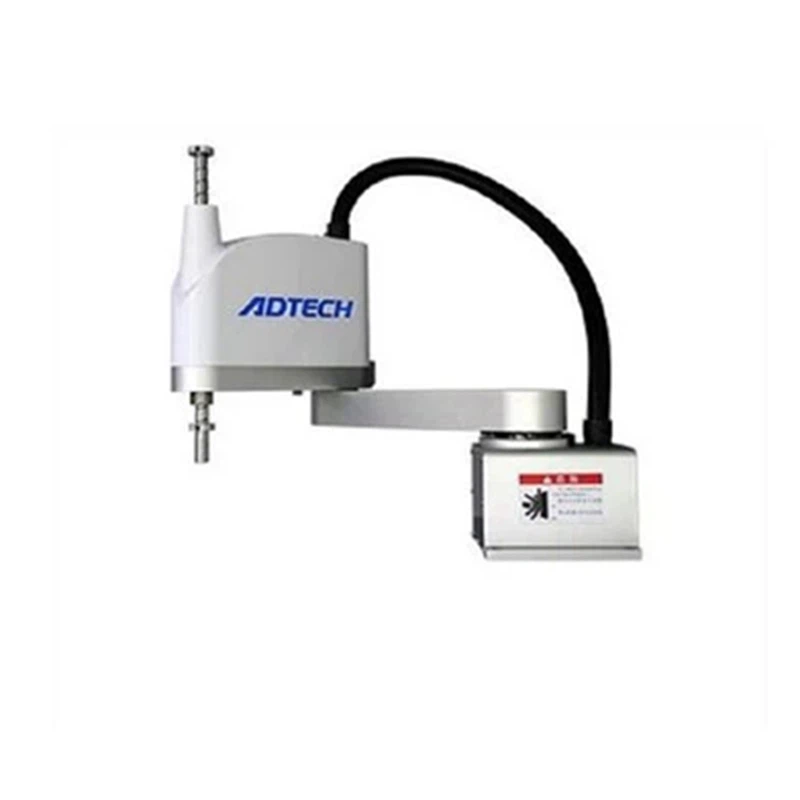

2 hingga 20kg muatan scara robot adtech lengan 300 hingga 800mm

2 hingga 20kg muatan scara robot adtech lengan 300 hingga 800mm

ADTech AR Serial Rated Load 2kg hingga 20kg
Hantar pertanyaan

Pengenalan Produk



Jenama: Adtech

Asal: Shenzhen China

Waranti: Satu tahun

Sokongan: Dalam talian



Spesifikasi



model AR3215 AR4215 AR5215 AR6520 AR7520 AR8520 AR61030 AR81030 AR101030 AR7225 AR9225
spesies Scara Scara Scara Scara Scara Scara Scara Scara Scara Scara Scara
paksi 4 4 4 47 4 4 4 4 4 4 4
panjang lengan (mm) 300 400 500 600 700 800 600 800 1000 700 900
spesifikasi paksi

X



 panjang lengan (mm) 100 200 300 300 400 500 200 400 600 400 600
julat putaran (± darjah) 127 127 127 130 130 130 145 145 145 130 130
Y panjang lengan (mm) 200 200 200 300 300 300 400 400 400 300 300
julat putaran (± darjah) 142 142 142 140 140 140 150 150 150 140 140
Z laluan (mm) 150 150 150 200 200 200 300 300 300 250

250
R julat putaran (± darjah) 360 360 360 360 360 360 360 360 360 360 360
halaju tertinggi X (ijazah /s) 600 600 600 375 300 250 300 300 250 375 375
Y (ijazah /s) 600 600 600 600 600 600 375 375 375 600 600
Gabungan X & Y (m/s) 5.2 6.3 7.3 7.1 6.8 6.6 6.5 6.8 7.0 7.7 9.0
Z(M/S) 1.3 1.3 1.3 1.1 1.1 1.1 1.4 1.4 1.4 1.21 1.2
R (ijazah /s) 1667 1667 1667 1500 1500 1500 1000 1000 1000 1500 166.7
Masa kitaran standard (s) 0.5 0.4 0.48 0.43 0.42 0.4 0.5 0.6 0.8 0.37 0.4
Ulangi ketepatan kedudukan X & Y (± mm) 0.01 0.01 0.01 0.015 0.015 0.015 0.03 0.03 0.03 0.015 0.015
Z (± mm) 0.01 0.01 0.01 0.01 0.01 0.01 0.02 0.02 0.02 0.01

0.01
R (± mm) 0.005 0.005 0.005 0.005 0.005 0.005 0.01 0.01 0.01 0.005 0.005
Beban Rated/Max (kg) 2/5 2/5 2/5 5/10 5/10 5/10 10/20 10/20 10/20 2/5 2/5
Muat momen inersia paksi (dinilai/maksimum) 0. 005kg.m2 0. 005kg.m2 0. 005kg.m2 0. 05kg.m2 0. 05kg.m2 0. 05kg.m2 0. 1kg.m2 0. 1kg.m2 0. 1kg.m2 0. 005kg.m2 0. 005kg.m2
0. 035kg.m2 0. 035kg.m2 0. 035kg.m2 0. 2kg.m2 0. 2kg.m2 0. 2kg.m2 0. 5kg.m2 0. 5kg.m2 0. 5kg.m2 0. 035kg.m2 0. 035kg.m2
baris isyarat pengguna

0. 2SQ × 16lines,

8 output

6Inputs

0. 2SQ × 16LINES

8 output

6Inputs

0. 2SQ × 16LINES

8 output

6Inputs

0. 2SQ × 16LINES

8 output

6Inputs

0. 2SQ × 16LINES

8 output

6Inputs

0. 2SQ × 16LINES

8 output

6Inputs

0. 2SQ × 16LINES

8 output

6Inputs

0. 2SQ × 16LINES

8 output

6Inputs

0. 2SQ × 16LINES

8 output

6Inputs

0. 2SQ × 16LINES

8 output

6Inputs

0. 2SQ × 16LINES

8 output

6Inputs
paip pengguna φ6 × 2 akar φ6 × 2 akar φ6 × 2 akar φ6 × 2 akar φ6 × 2 akar φ6 × 2 akar φ6 × 2 akar φ6 × 2 akar φ6 × 2 akar φ6 × 2 akar φ6 × 2 akar
Perlindungan had

1. Had perisian
2. Had Mekanikal

(Paksi xyz)

1. Had perisian
2. Had Mekanikal

(Paksi xyz)

1. Had perisian
2. Had Mekanikal

(Paksi xyz)

1. Had perisian
2. Had Mekanikal

(Paksi xyz)

1. Had perisian
2. Had Mekanikal

(Paksi xyz)

1. Had perisian
2. Had Mekanikal

(Paksi xyz)

1. Had perisian
2. Had Mekanikal

(Paksi xyz)

1. Had perisian
2. Had Mekanikal

(Paksi xyz)

1. Had perisian
2. Had Mekanikal

(Paksi xyz)

1. Had perisian
2. Had Mekanikal

(Paksi xyz)

1. Had perisian
2. Had Mekanikal

(Paksi xyz)
Berat (kg) 13.1 13.3 13.6 24.3 25 26.5 43.5 44.8 46.3 20.7 22.3







Moving Space
